STAINLESS STEEL CAST BALL VALVES
- one piece - reduced bore -

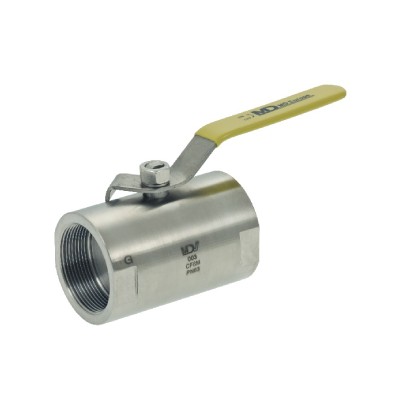

MDV-003T
1 piece, reduced bore
face-to-face mill standard
Thread f/f ISO 228-1G
Nominal pressure:
PN 63
PTFE seats and seals
Thread f/f ISO 228-1G
Nominal pressure:
PN 63
PTFE seats and seals
Datasheet

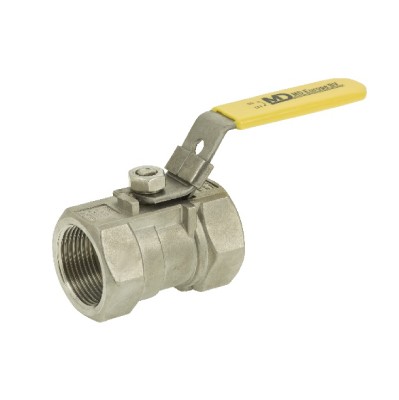

MDV-003PT
1 piece, reduced bore
face-to-face mill standard
Thread f/f ISO 228-1G
Nominal pressure:
DN 8 (1/4") - DN 25 (1" ): PN 63
DN 32 ( 1.1/4") - DN 50 (2") : PN40
Temperature -20 up to 180 degrees
face-to-face mill standard
Thread f/f ISO 228-1G
Nominal pressure:
DN 8 (1/4") - DN 25 (1" ): PN 63
DN 32 ( 1.1/4") - DN 50 (2") : PN40
Temperature -20 up to 180 degrees
Datasheet
STAINLESS STEEL CAST BALL VALVES
- one piece - reduced bore - mini

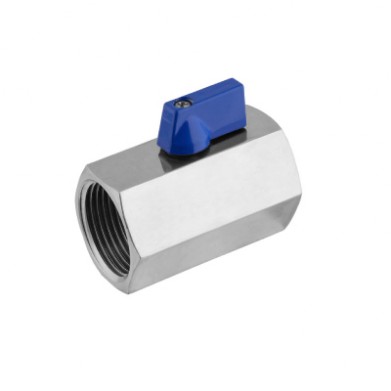

QF-103Tmini
1 piece, reduced bore, hexagon body external polished
face-to-face mill standard
Thread f/f ISO 228-1G
Nomonal pressure:
PN 63
PTFE seats
face-to-face mill standard
Thread f/f ISO 228-1G
Nomonal pressure:
PN 63
PTFE seats
Datasheet

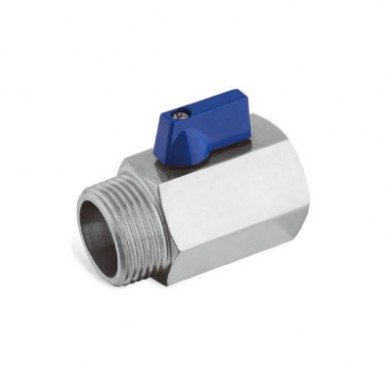

QF-113Tmini
1 piece, reduced bore, hexagon body external polished
face-to-face mill standard
Thread m/f , m-ISO 7-1R, f-ISO 228-1G
Nomonal pressure:
PN 63
PTFE seats
face-to-face mill standard
Thread m/f , m-ISO 7-1R, f-ISO 228-1G
Nomonal pressure:
PN 63
PTFE seats
Datasheet

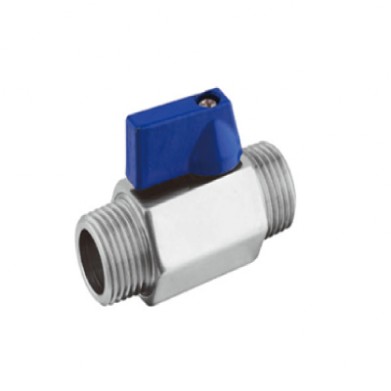

QF-123Tmini
1 piece, reduced bore, hexagon body external polished
face-to-face mill standard
Thread m/m ISO 7-1R
Nomonal pressure:
PN 63
PTFE seats
face-to-face mill standard
Thread m/m ISO 7-1R
Nomonal pressure:
PN 63
PTFE seats
Datasheet
STAINLESS STEEL CAST BALL VALVES
- two piece - full bore -

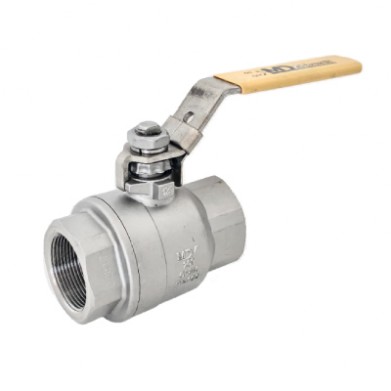

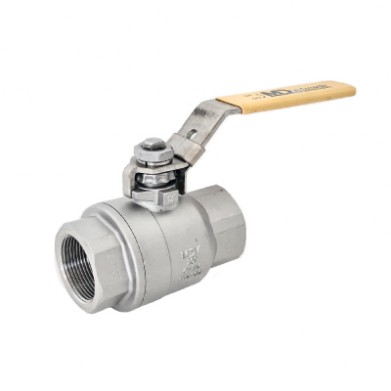

MDV-206T
2 piece, full bore
face-to-face EN 16722 table 1-M3 (before DIN 3202-4-M3)
Thread f/f ISO 228-1G
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 80 (3") : PN 40
Temperature -20 up to 180 degrees
face-to-face EN 16722 table 1-M3 (before DIN 3202-4-M3)
Thread f/f ISO 228-1G
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 80 (3") : PN 40
Temperature -20 up to 180 degrees
Datasheet

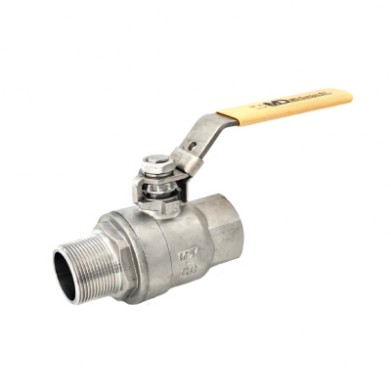

MDV-211T
2 piece, full bore
face-to-face mill standard
Thread m/f , m-ISO 7-1R, f-ISO 228-1G
Nominal pressure:
PN 63
PTFE seats and seals
face-to-face mill standard
Thread m/f , m-ISO 7-1R, f-ISO 228-1G
Nominal pressure:
PN 63
PTFE seats and seals
Datasheet

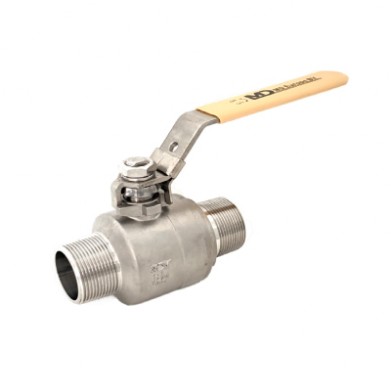

MDV-212T
2 piece, full bore
face-to-face mill standard
Thread m/m ISO 7-1R
Nominal pressure:
PN 63
PTFE Seats and seals
Datasheet

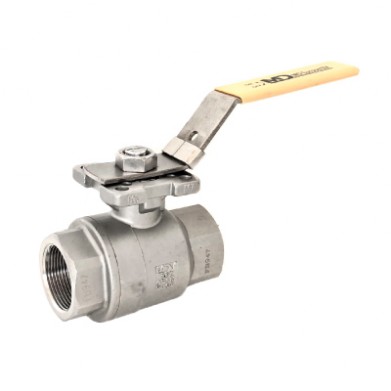

MDV-368T
2 piece, full bore, ISO 5211 direct-mount top flange
face-to-face EN 16722 table 1-M3 (before DIN 3202-4-M3)
Thread f/f ISO 228-1G
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 80 (3") : PN 40
Temperature -20 up to 180 degrees
Datasheet
MDV-209T
2 piece, full bore
face-to-face EN 16722 table 1-M3 (before DIN 3202-4-M3)
Thread f/f ISO 228-1G
Nominal pressure:
DN 8 ( 1/4") - DN 25 ( 1") : PN 140
DN 32 ( 1.1/4") - DN 50 ( 2 ") : PN 100
Temperature -20 up to 180 degrees
Datasheet
STAINLESS STEEL CAST BALL VALVES
- two piece - high pressure

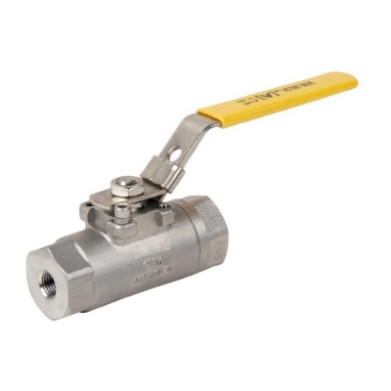

VV-209T
2 piece
face-to-face mill standard
Thread f/f ISO 228-1G
POM seats and seals
Nominal Pressure:
PN 210 bar, see pressure-temperature chart on datasheet
Temperature -40 up to 100 degrees C
Datasheet
VV-208T
2 piece
face-to-face mill standard
Thread f/f ISO 228-1G
POM seats and seals
Nominal Pressure:
PN 420 see pressure-temperature chart on datasheet
Temperature -40 up to 2100 degrees
Datasheet
STAINLESS STEEL CAST BALL VALVES
- three piece - full bore

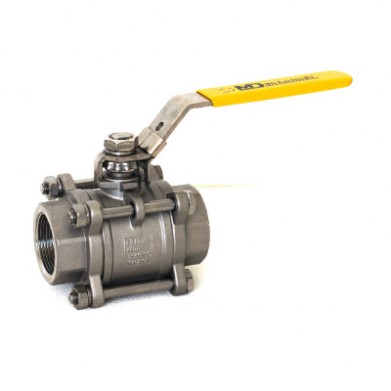

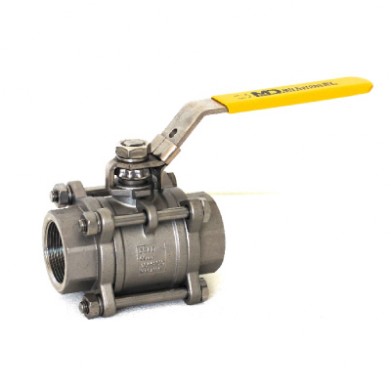

MDV-205T
3 pce, full bore
face-to-face EN 16722 table 1-M3 (before DIN 3202-4-M3)
Thread f/f ISO 228-1G
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 100 (4") : PN 40
Temperature -20 up to 180 degrees
Datasheet
MDV-205NT
3 pce, full bore
face-to-face EN 16722 table 1-M3 (before DIN 3202-4-M3)
Thread f/f NPT ANSI/ASME B1.20.1
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 100 (4") : PN 40
Temperature -20 up to 180 degrees
Datasheet

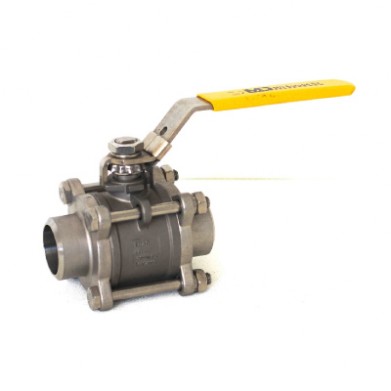

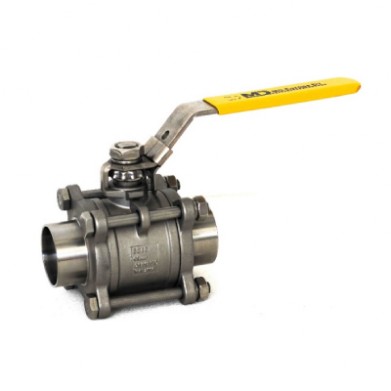

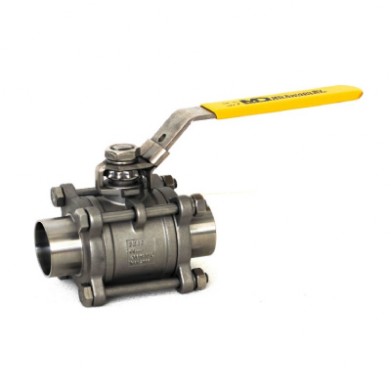

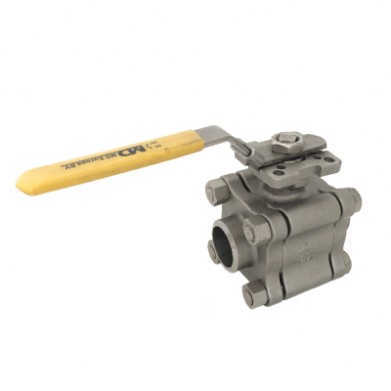

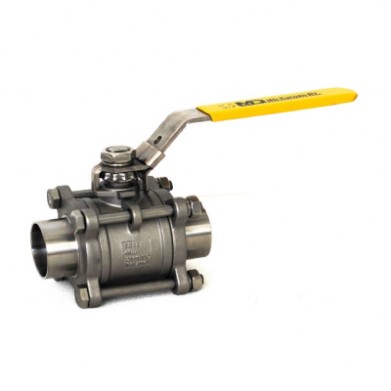

MDV-205BW
3 pce, full bore
face-to-face EN 12982 table 1-67 (before DIN 3202 S13)
BW ENDS according ANSI/ASME B16.25
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 100 (4") : PN 40
Temperature -20 up to 180 degrees
Datasheet
MDV-205BW 2 mm
3 pce, full bore
face-to-face EN 12982 table 1-67 (before DIN 3202 S13)
BW ENDS plain ends acc to drawing (see datasheet)
Nominal pressure:
PN 63
PTFE Seats and seals
Datasheet
MDV-205BW metric
3 pce, full bore
face-to-face EN 12982 table 1-67 (before DIN 3202 S13)
BW ENDS plain ends acc to drawing (see datasheet)
Nominal pressure:
PN 63
PTFE Seats and seals
Datasheet

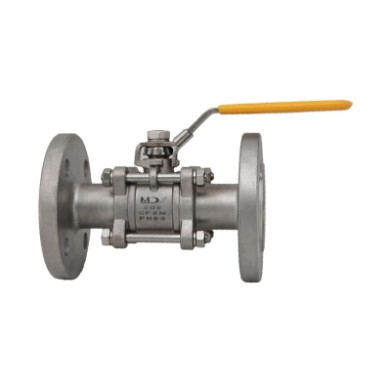

MDV-205FL
3 pce, full bore
face-to-face EN 558 table 2-1 (before DIN 3202 F1)
flange ends EN 1092-1 Type 21
Nominal pressure
DN 15 - DN 50 : PN 40
DN 65 - DN 100 : PN 16
Temperature -20 up to 180 degrees
Datasheet

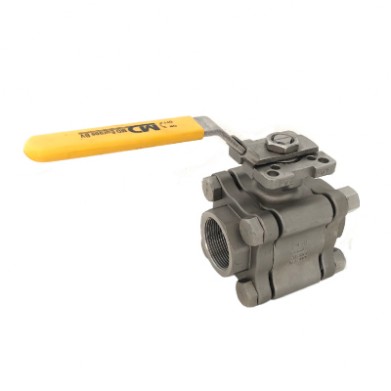

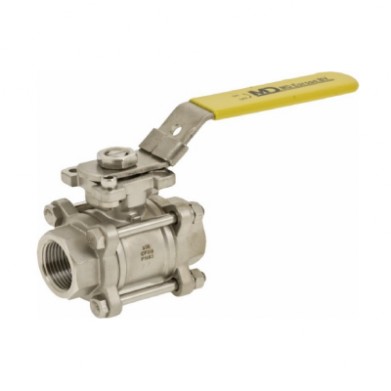

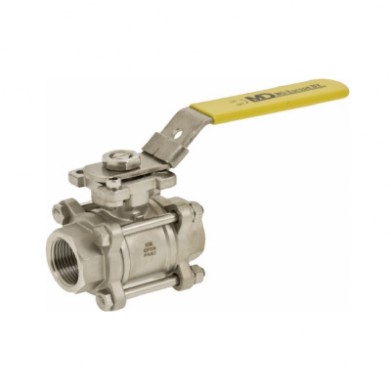

MDV-358T
3 piece, full bore, ISO 5211 direct-mount top flange
face-to-face EN 16722 table 1-M3 (before DIN 3202-4-M3)
Thread f/f ISO 228-1G
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 100 (4") : PN 40
Temperature -20 up to 180 degrees
Datasheet
MDV-358NT
3 piece, full bore, ISO 5211 direct-mount top flange
face-to-face EN 16722 table 1-M3 (before DIN 3202-4-M3)
Thread f/f NPT ANSI/ASME B1.20.1
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 100 (4") : PN 40
Temperature -20 up to 180 degrees
Datasheet

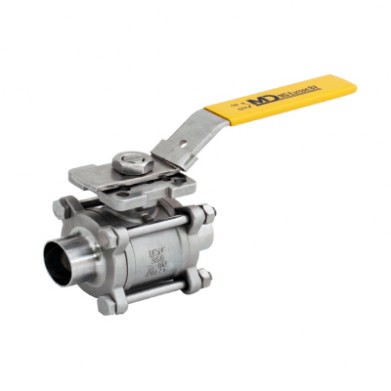

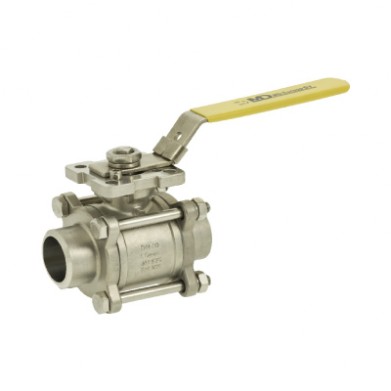

MDV-358BW
3 piece, full bore, ISO 5211 direct-mount top flange
face-to-face EN 12982 table 1-67 (before DIN 3202 S13)
BW ENDS according ANSI/ASME B16.25
Nominal pressure:
DN 8 (1/4") - DN 50 (2") :PN 63
DN 65 (2.1/2") - DN 100 (4") : PN 40
Temperature -20 up to 180 degrees
Datasheet
MDV-358BW 2 mm
3 piece, full bore, ISO 5211 direct-mount top flange
face-to-face EN 12982 table 1-67 (before DIN 3202 S13)
BW ENDS plain ends acc to drawing (see datasheet)
Nominal pressure:
PN 63
PTFE Seats and seals
Datasheet
MDV-358BW metric
3 piece, full bore, ISO 5211 direct-mount top flange
face-to-face EN 12982 table 1-67 (before DIN 3202 S13)
BW ENDS plain ends acc to drawing (see datasheet)
Nominal pressure:
PN 63
PTFE Seats and seals
Datasheet

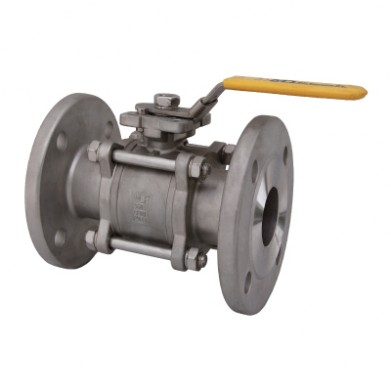

MDV-358FL
3 piece, full bore, ISO 5211 direct-mount top flange
face-to-face EN 558 table 2-1 (before DIN 3202 F1)
flange ends EN 1092-1 Type 21
Nominal pressure
DN 15 - DN 50 : PN 40
DN 65 - DN 100 : PN 16
Temperature -20 up to 180 degrees
Datasheet
STAINLESS STEEL CAST BALL VALVES
- three piece - cavity filled
MDV-205D series A
3 pce, full bore
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-205D series B
3 pce, full bore
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-205D series C
3 pce, full bore
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-205D series E
3 pce, full bore
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet

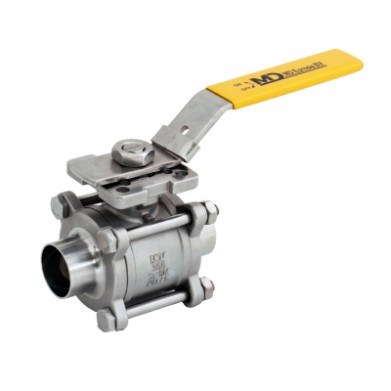

MDV-358D series A
3 piece, full bore, ISO 5211 direct-mount top flange
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-358D series B
3 piece, full bore, ISO 5211 direct-mount top flange
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-358D series C
3 piece, full bore, ISO 5211 direct-mount top flange
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-358D series C-NL
3 piece, full bore, ISO 5211 direct-mount top flange
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-358D series E
3 piece, full bore, ISO 5211 direct-mount top flange
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face EN 12982 table 1-67
BW ENDS: plain ends acc to drawing (see datasheet)
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet

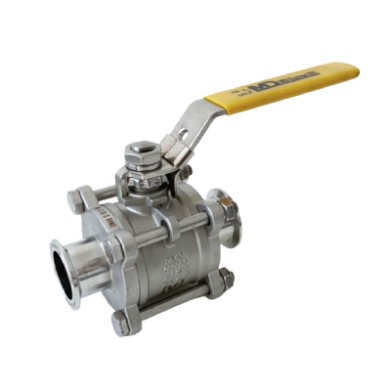

MDV-205DCL series A
3 pce, full bore
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face mill standard
FERRULE ENDS ACCORDING DIN 32676
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-205DCL series B
3 pce, full bore
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face mill standard
FERRULE ENDS ACCORDING DIN 32676
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-205DCL series C
3 pce, full bore
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face mill standard
FERRULE ENDS ACCORDING DIN 32676
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet

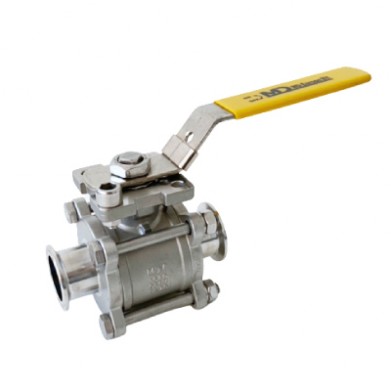

MDV-358DCL series A
3 piece, full bore, ISO 5211 direct-mount top flange
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face mill standard
FERRULE ENDS ACCORDING DIN 32676
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-358DCL series B
3 piece, full bore, ISO 5211 direct-mount top flange
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face mill standard
FERRULE ENDS ACCORDING DIN 32676
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
MDV-358DCL series C
3 piece, full bore, ISO 5211 direct-mount top flange
CAVITY PTFE FILLED
INSIDE SURFACE (d2/P) roughness Ra>0,4<0,8 mµ
face-to-face mill standard
FERRULE ENDS ACCORDING DIN 32676
Nominal pressure
PTFE seats and seals
Temperature -20 °C up to +180 °C
Datasheet
STAINLESS STEEL CAST BALL VALVES
- three piece - fire safe -
MDV-355T FS
3 piece, full bore, ISO 5211 direct-mount top flange
FIRE SAVE TESTED TO API 607
face-to-face EN 16722 table 1-M3
Thread f/f ISO 228-1G
nominal pressure
DN 8 ( 1/4") - DN 25 ( 1") : PN 140
CTFE seats
Temperature -20°C up to +180°C
Datasheet
MDV-355BW FS
3 piece, full bore, ISO 5211 direct-mount top flange
FIRE SAVE TESTED TO API 607
face-to-face EN 12982 table 1-67
BW ENDS according ANSI/ASME B16.25
nominal pressure
DN 8 ( 1/4") - DN 25 ( 1") : PN 140
CTFE Seats and seals
Temperature -20 up to 180 degrees
Datasheet

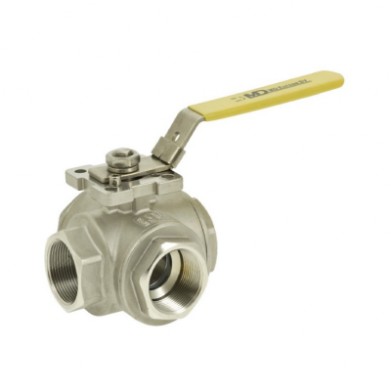

STAINLESS STEEL CAST BALL VALVES
- 3 way -
MDV-318TL
4 piece,reduced bore, ISO 5211 direct-mount top flange
3-WAY L-BORE
face-to-face mill standard
Thread f/f /f ISO 228-1G
Nominal pressure:
PN63
Temperature -20 up to 180 degrees
Datasheet
MDV-318TT
3-WAY T-BORE
face-to-face mill standard
Thread f/f /f ISO 228-1G
Nominal pressure:
PN63
PTFE Seats and seals
Datasheet
STAINLESS STEEL CAST BALL VALVES
- Flanged -

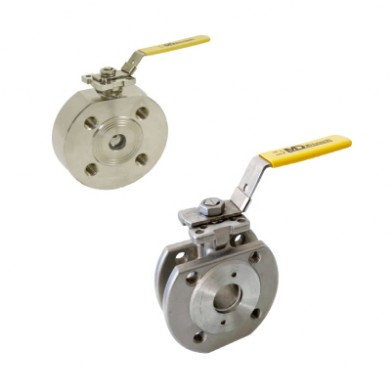

MDF-56
1 piece, full bore, ISO 5211 direct-mount top flange
WAFER TYPE
face-to-face mill standard
flange ends EN 1092-1 Type 21
Nominal pressure
DN 15 - DN 50 : PN 40
PTFE Seats and seals
Temperature -20 up to 180 degrees
Datasheet

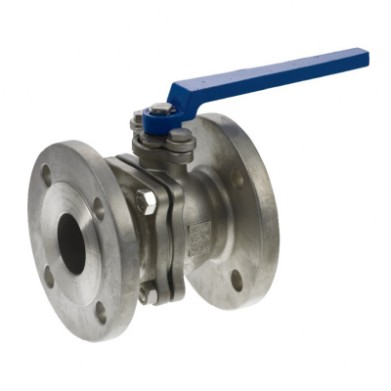

MDF-59E
2 piece, full bore
face-to-face EN 558-1 tabel 2,27
flange connection EN 1092-1 Type 21
Nominal pressure
DN 15 - DN 50 : PN 40
DN 65 - DN 100 : PN 16
Temperature -20 up to 180 degrees
Datasheet

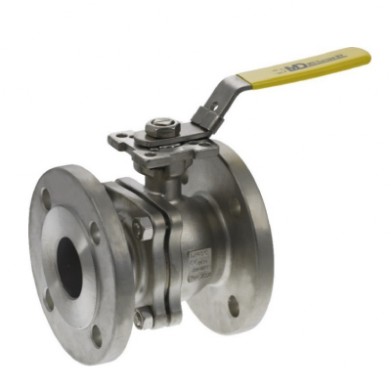

MDF-55E
2 piece, full bore, ISO 5211 Direct Mount top flange
face-to-face EN 558-1 tabel 2,27
flange connection EN 1092-1 Type 21
Nominal pressure
DN 15 - DN 50 : PN 40
DN 65 - DN 150 : PN 16
Temperature -20 up to 180 degrees
Datasheet
MDV-205FL
3 pce, full bore
face-to-face EN 558 table 2-1 (before DIN 3202 F1)
flange ends EN 1092-1 Type 21
Nominal pressure
DN 15 - DN 50 : PN 40
DN 65 - DN 100 : PN 16
Temperature -20 up to 180 degrees
Datasheet
MDV-358FL
3 piece, full bore, ISO 5211 direct-mount top flange
face-to-face EN 558 table 2-1 (before DIN 3202 F1)
flange ends EN 1092-1 Type 21
Nominal pressure
DN 15 - DN 50 : PN 40
DN 65 - DN 100 : PN 16
Temperature -20 up to 180 degrees
Datasheet
STAINLESS STEEL CAST VALVES
- Globe - Gate - Check - Strainer -

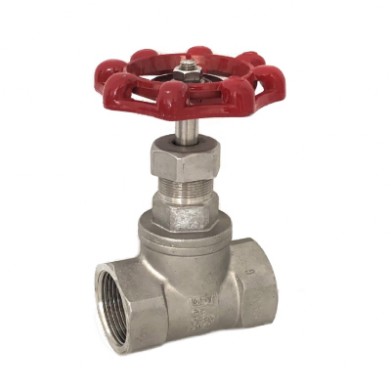

MDV-GB
reduced bore, non rising stem
screwed-in bonnet, solid diec
thread f/f ISO 228-1G
nominal pressure
DN 8 (1/4") - DN 25 (1") : PN 63
DN 32 (1.1/4") - DN 50 (2"): PN 40
Temperature -20 up to 180 degrees
Datasheet

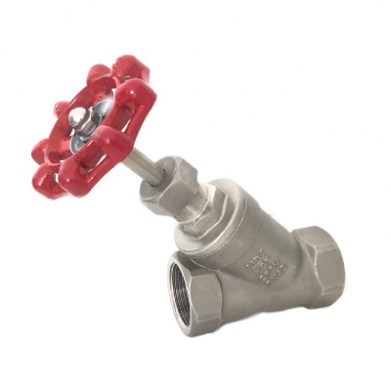

MDV-YGB
full bore, non rising stem
screwed-in bonnet, solid disc
thread f/f ISO 228-1G
Nominal pressure
DN 8 (1/4") - DN 25 (1") : PN 63
DN 32 (1.1/4") - DN 50 (2"): PN 40
Temperature -20 up to 180 degrees
Datasheet

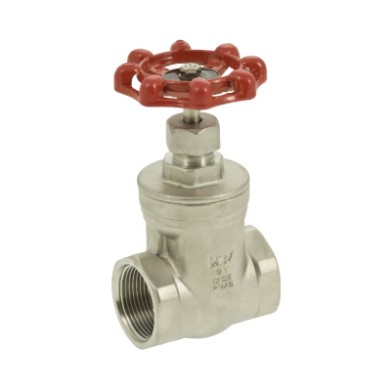

MDV-GT
full bore, non rising stem
screwed-in bonnet, solid wedge disc
f/f thread ISO 228-1G
Nominal pressure
DN 8 (1/4") - DN 25 (1") : PN 63
DN 32 (1.1/4") - DN 50 (2"): PN 40
Temperature -20 up to 180 degrees
Datasheet

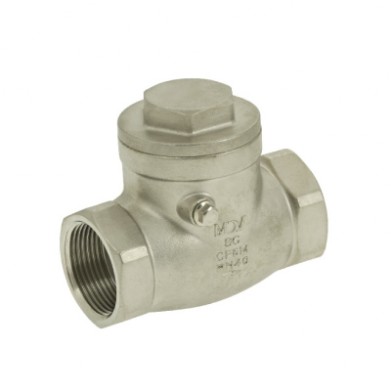

MDV-SC
full bore
screwed-in bonnet, stainless steel disc
Nominal pressure
DN 8 (1/4") - DN 25 (1") : PN 63
DN 32 (1.1/4") - DN 50 (2"): PN 40
PTFE Seats and seals
Datasheet

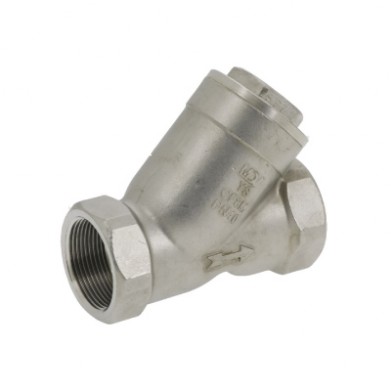

MDV-YSC
full bore, Y-type, screwed-in bonnet
PTFE disc., st.st. spring
Nominal pressure
DN 8 (1/4") - DN 25 (1") : PN 63
DN 32 (1.1/4") - DN 50 (2"): PN 40
PTFE Seats and seals
Datasheet

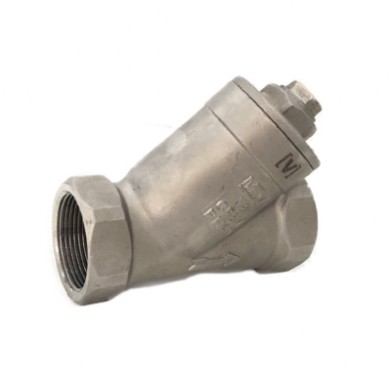

MDV-YS
full bore Y-type
screwed-in bonnet, stainless steel screen
Nominal pressure
DN 8 (1/4") - DN 25 (1") : PN 63
DN 32 (1.1/4") - DN 50 (2"): PN 40
PTFE Seats and seals
Datasheet
PNEUMATIC ACTUATORS
- single acting - double acting -

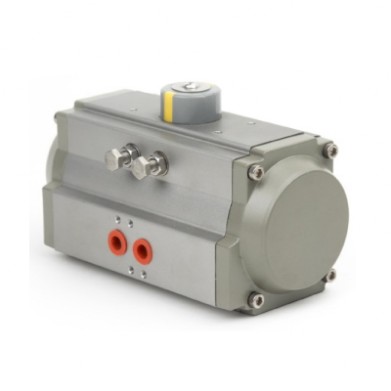

ZHITAI DA PNEMATIC ACTUATORS
mounting according ISO 5211
assessories conections NAMUR
rotation angle 90°
torque value direct proportional to the airsupply
NBR O-ring seals
standard work temperature 0 °C upto +50 ° C
Datasheet

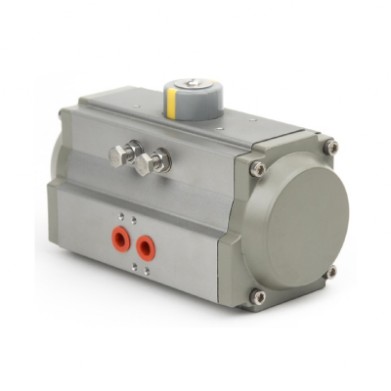

ZHITAI SA PNEMATIC ACTUATORS
mounting according ISO 5211
assessories conections NAMUR
rotation angle 90°
torque value direct proportional to the airsupply
NBR O-ring seals
standard work temperature 0 °C upto +50 ° C
Datasheet
For any questions, remarks or comments you can always call or email:
+31 (0)492 820010 info@md-europe.eu
